0.5mm Pitch
HF83 Series
The HF83 series consists of 0.5mm pitch, ZIF, horizontal-mating, SMT, bottom-contact FPC connectors featuring a one-touch locking mechanism. Designed for applications such as automotive GPS and AV equipment, as well as industrial and medical electronics, these connectors are engineered to withstand vibration and prevent FPC/FFC cables from detaching or being inserted at an angle. A 1mm pitch version is also available.
Product Purpose:
 |
 |
 |
 |
 |
 |
|
●Smartwatch |
●iPad Tablet |
●Mac Computer |
●Smart Set-Top Box TV App |
●Earbuds/Pods |
●iPhone Smartphone |
 |
 |
 |
 |
 |
 |
|
●Smart Speaker Pod |
●UAV/Drone |
●In-Vehicle Equipment |
●Security Equipment |
●AGV/AMR |
●Motor Drive |
 |
 |
 |
 |
 |
 |
|
●Variable Frequency Drive (VFD) |
●Radar, LiDAR |
●TCU/Gateway |
●Industrial Camera |
●CNCs/PLCs |
●Endoscope |
 |
 |
 |
 |
 |
 |
|
●Industrial Sensors |
●Server |
●MRI/CT |
●Industrial Robots |
●Motor |
●Meter |
 |
 |
 |
 |
 |
 |
|
●Car Charger |
●HUD Head-Up Display |
●IVI/Navigation |
●Monitor |
●Camera |
●Multifunction Printer |
Download:
Product Specifications
| Connector Shape | Socket |
PCB Mounting Method |
SMT |
|
Mounting Type |
RightAngle | Contact Orientation | BottomContact |
|
Mating Pitch |
0.5/1.0mm | Baseboard Mounting Pitch Pitch | 0.5/1.0mm |
|
Number of Cores |
8, 10, 12, 15, 18, 20, 22, 24, 26, 30, 40, 45, 48, 50, 54, 60, 64, 68, 70, 80 | Terminal Plating | Gold |
|
Coating Thickness |
0.1 μm Min. |
Electrical Transmission Specifications |
|
|
Transmission Speed (Reference Value) |
|
Body Length (In the Direction of the Pitch) |
|
|
Body Width (Longitudinal) |
6.5mm |
Body Height |
2.0mm |
|
Rated Voltage (AC) |
50 V |
Rated Voltage (DC) |
50 V |
|
Rated Current |
0.4A |
Withstand Voltage Rating |
200 V（AC） |
|
Impedance Matching |
|
Contact Impedance |
50 mΩ Max. |
|
Maximum Operating Temperature Range |
125 ℃ |
Operating Temperature Range (Min.) |
-40 ℃ |
|
Terminal Arrangement |
Sigle Row | RoHS2 | Yes |
|
Suitable for FPC/FFC Thickness |
0.3mm±0.02mm | Dual Contact Points | No |
|
Pillar of Product Positioning |
No |
Mating Cycles |
50 |
|
Locking Method |
Auto I-Lock |
Card Removal Prevention Function |
Yes |
|
Packaging Form |
Emboss |
Package Quantity |
2000 PCS |
|
Product Order Coding Rules: HF83-XXS-0.5SH-XX |
||||||
|
①Series Name |
②Series Number |
③Terminal Contact Configuration |
④Product Core Count |
⑤Contact Spacing |
⑥Terminal Shape |
⑦Product Packaging Specifications |
| HF | 83 |
None: Standard Type H: Space-Saving Type |
8, 10, 12, 15, 18, 20, 22, 24, 26, 30, 40, 45, 48, 50, 54, 60, 64, 68, 70, 80 |
0.5mm |
SH: SMT Horizontal Mounting Type |
(50): Standard Product (5,000 Pieces Per Pack) (99): 500 Pieces Per Pack |
Product Image |
Order Number |
Production Status |
3D Data Download |
Core Spacing [mm] |
Connection Method |
Product Height |
Width [mm] |
Number Of Cores |
Locking Mechanism |
Contact Position |
Operating Temperature Range (Max.) |
High-Speed Transmission |
Product Series |
|---|
Product Features
|

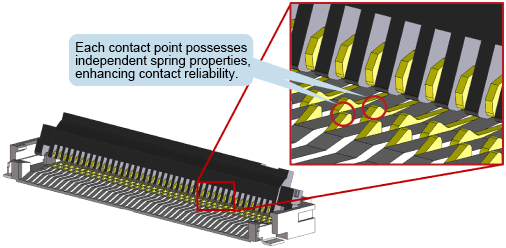

◆Independent Dual-Contact Structure The dual-contact design utilizes an independent spring structure; if one contact experiences poor connectivity due to foreign matter, the other maintains stable contact, ensuring high contact reliability. |
 |
|

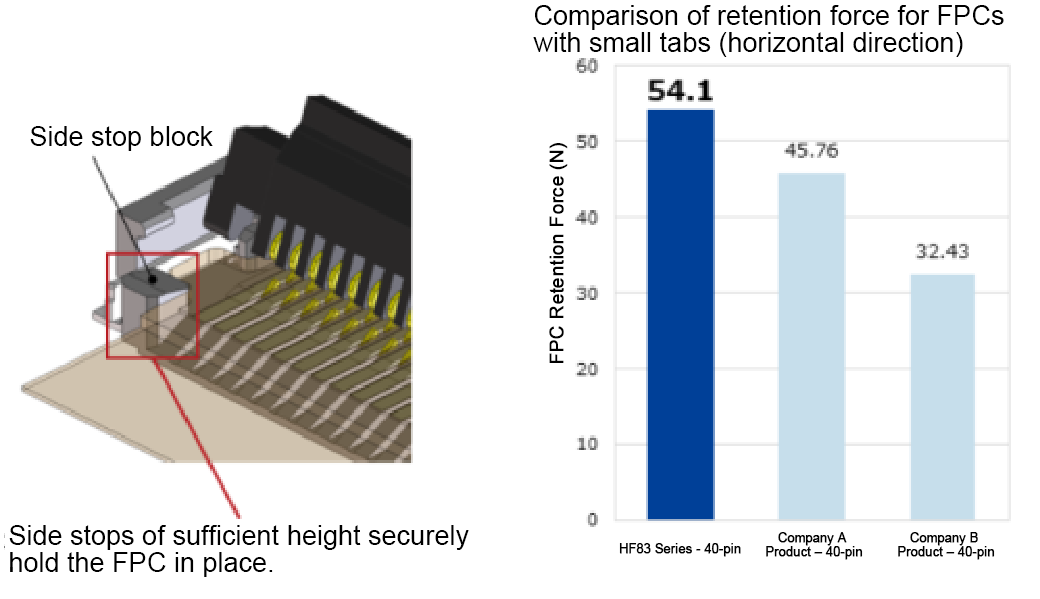

◆High Retention Force for FPC/FFC The HF83 series connectors use side stops to clamp the small ears on both sides of the FPC/FFC to achieve firm fixation. The holding force is higher than similar products and can still be used stably in a vibrating environment. |
 |
|

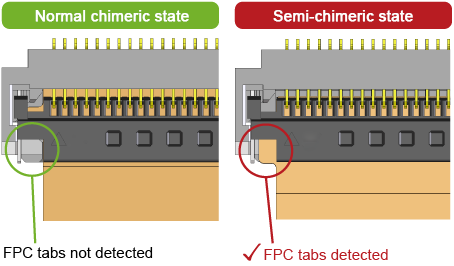

◆One of the Causes of Poor Connector Contact is the Partial Mating of FPC/FFC The HF83 series utilizes FPC/FFC with small tabs, allowing for visual confirmation of the mating status through a notch in the flip-lock; this prevents contact failures caused by incomplete mating. |
 |
|

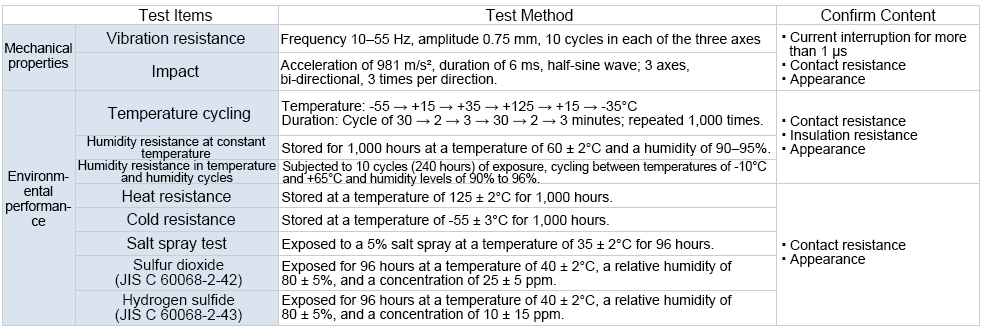

◆High-Temperature Resistance up to 125°C, Meeting Stringent Automotive Requirements The terminals feature heat-resistant materials and an elastic design that effectively suppress thermal displacement, ensuring reliable contact at high temperatures of 125°C. They have successfully passed automotive-grade temperature cycling tests (-55°C to +125°C, 1,000 cycles) and heat resistance tests (125°C, 1,000 hours). |
 |
|
|
|
|
Plating Specifications
| Coding | Contact Part | End Section | Auxiliary Steel Plate | RoHS Directive | |||
| 01+ | Au | Au | Sn-Cu | Correspond | |||
